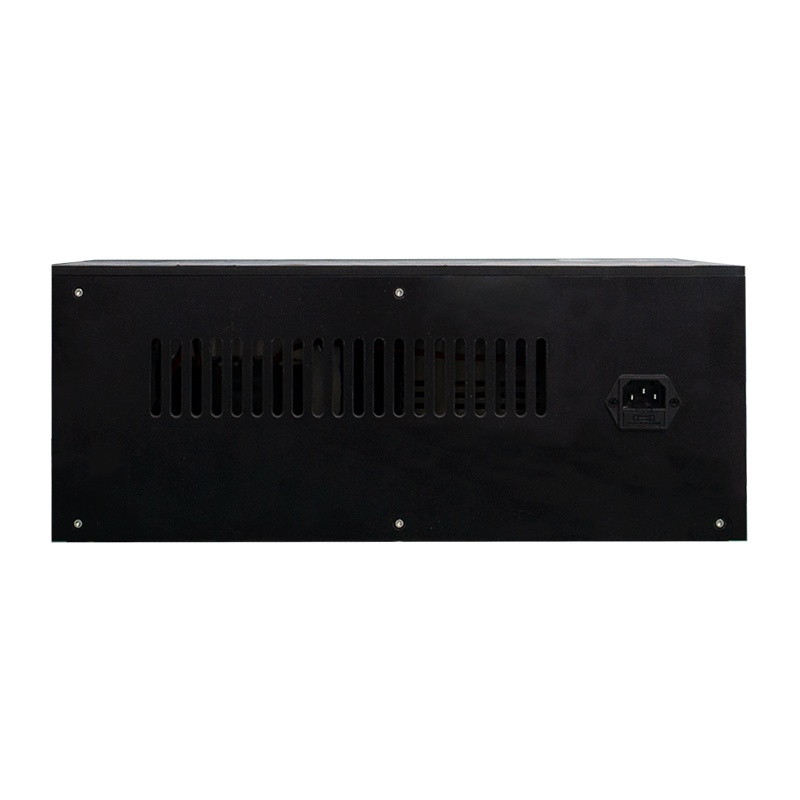

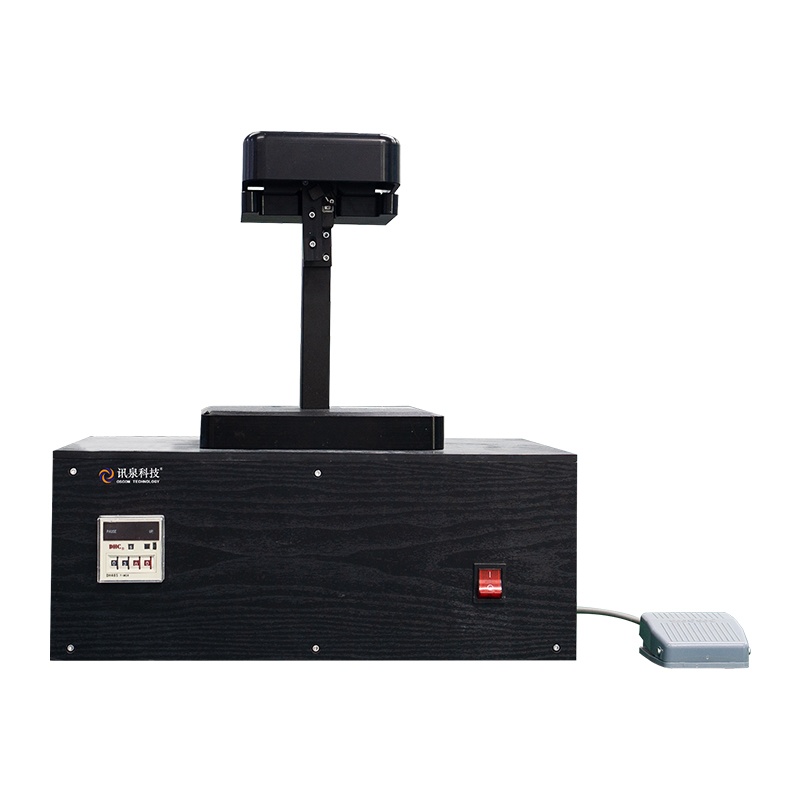

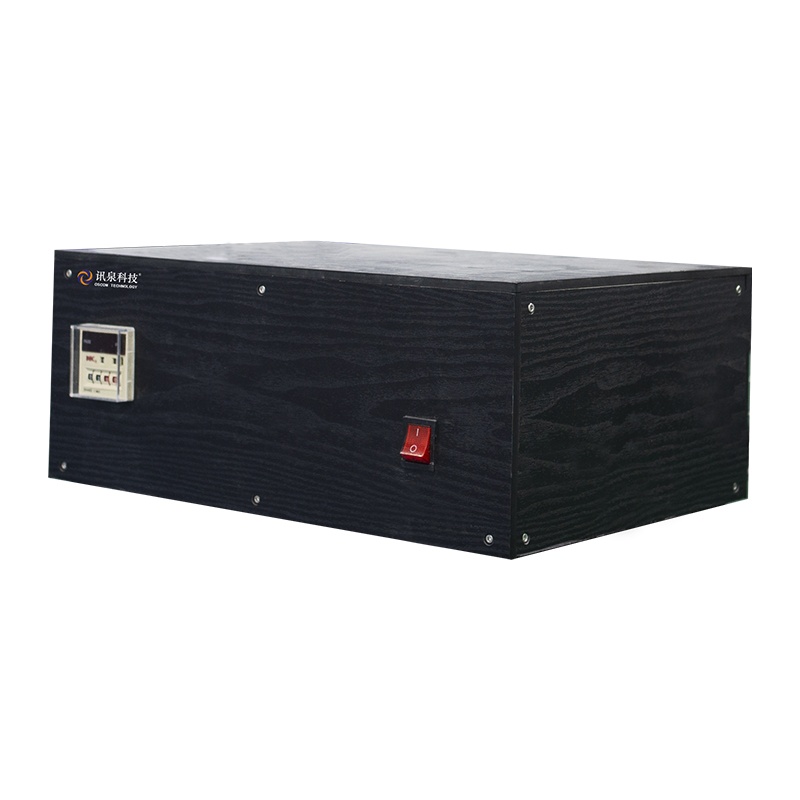

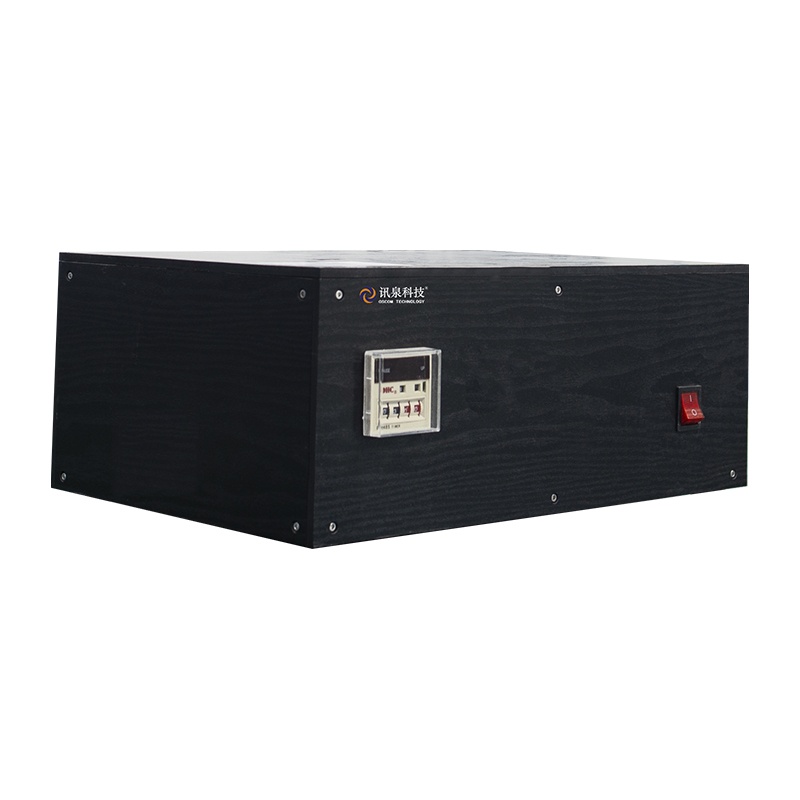

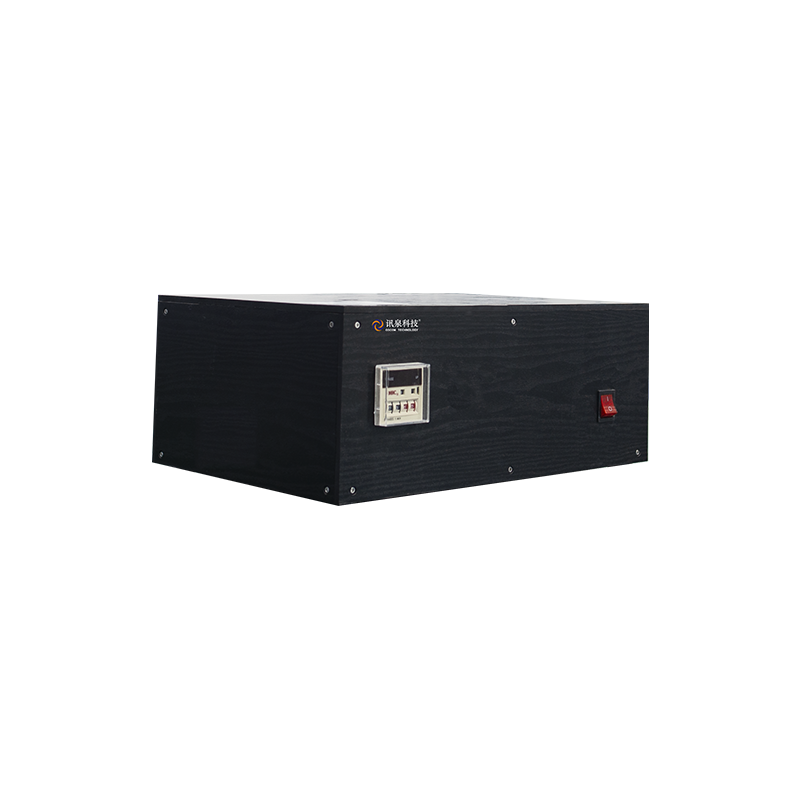

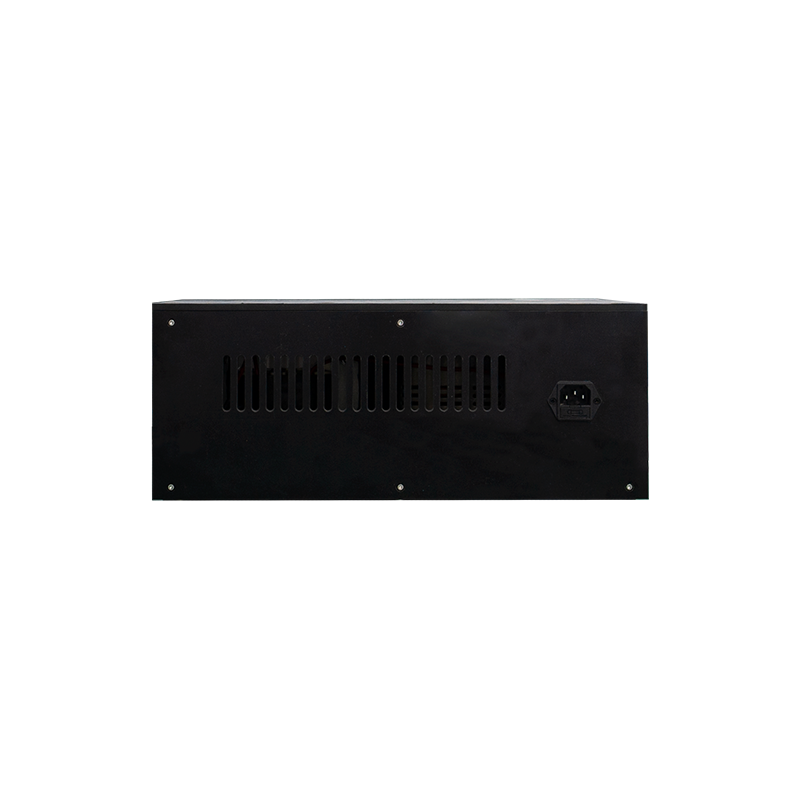

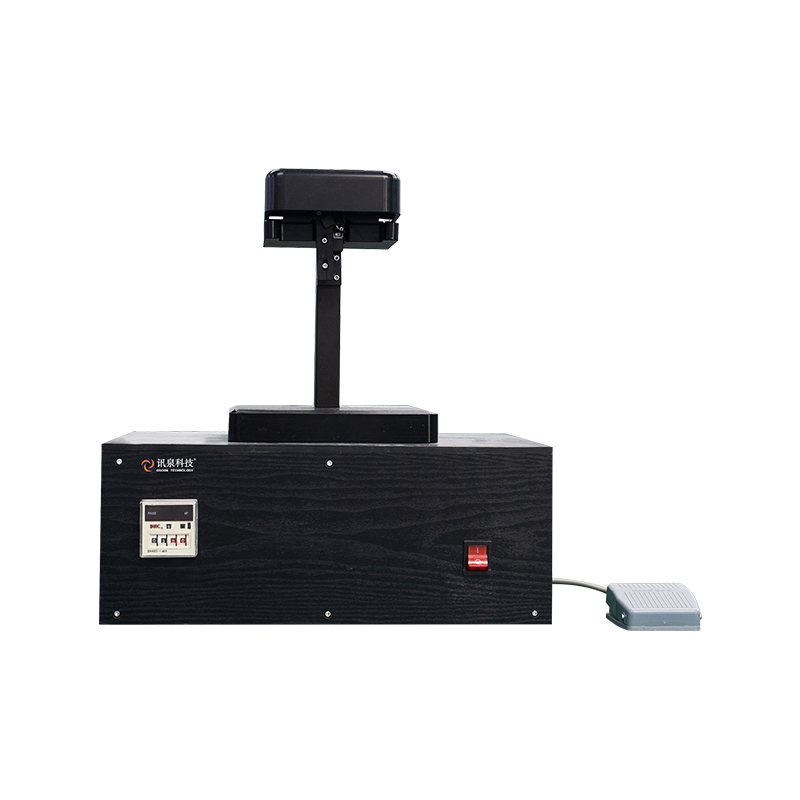

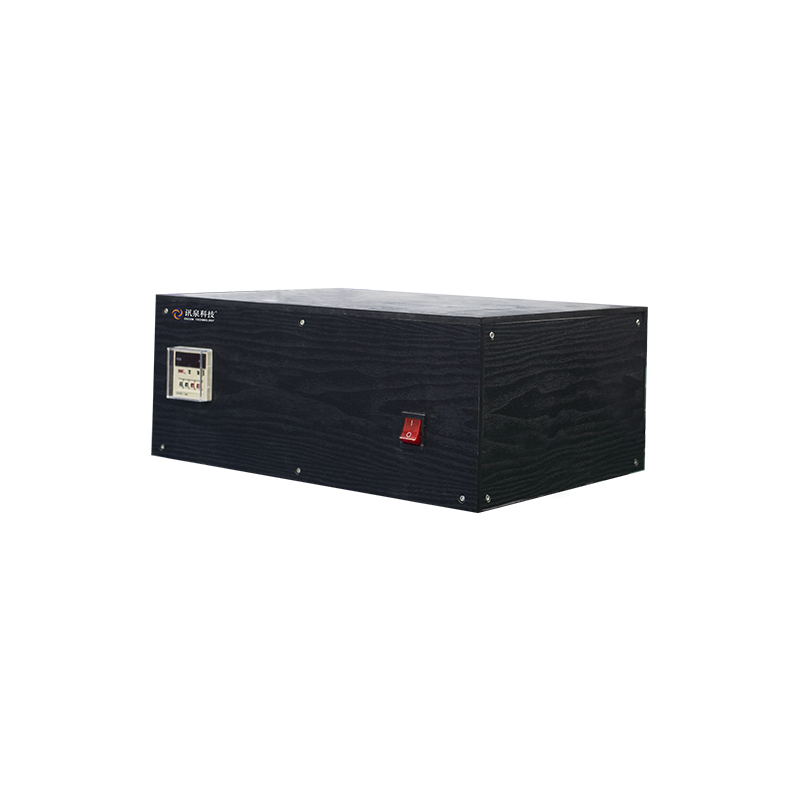

High Voltage Optical Fiber Ball Burner (XQ7610)
☆ Product Description:
XQ7610 is using the principle of high voltage discharge, it is used to burn the ball at the designated port of the optical fiber coupler, it can improve the index of port return loss. The port return loss of optical fiber coupler is generally more than 60dB after the processing of high voltage optical fiber ball burner, and the length can controlled within 2.0-2.5mm. High voltage optical fiber ball burner is a power tool for batch processing of optical fiber coupler return loss. It is easy to use, stable and reliable. The ball firing capacity of 1x2 optical fiber components is ≥300PCS/8hours.

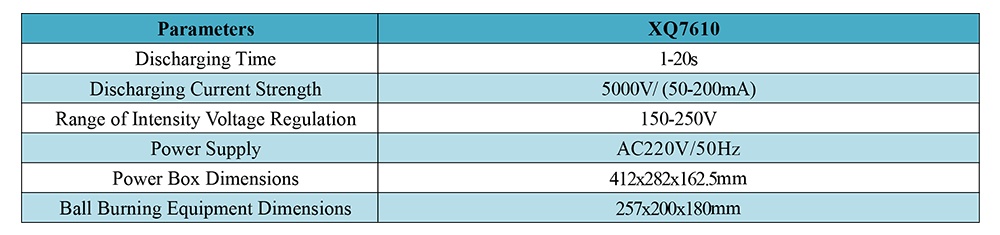

Technical Specifications:
Parameters |
Unit |
Value |
Discharge Time |
s |
1~20 |
Discharging Current Strength |
V ´ mA |
5000V ´ (50~200mA) |
Range of Intensity Voltage Regulation |
V |
150~250 |
Power Supply |
V |
AC220V/50Hz |
Machine Dimension |
mm |
430´297´175 |
Platform Dimension |
mm |
200´180´275 |
☆ Ordering Information:
Product Type |
XQ7610 |
|
Application |
1´2 Optical Fiber Coupler |
1´4 Optical Fiber Coupler |
Configurations |
1´2 Optical Fiber Ceramic Chip |
1´4Optical Fiber Ceramic Chip |
